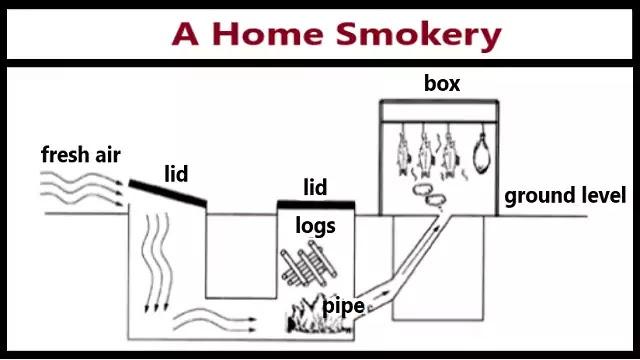

the diagram shows the structure of home smokery and how it works

The diagram illustrates how a home smokery is operated and structured.

Overall

, the smokery comprises three parts, connected by pipes, beginning with a

chamber

through which

air

enters and ending with a

box

in which the food is smoked.

First,

air

enters an underground

chamber

. The entry of

air

is controlled by opening and closing the lid of

this

chamber

. At the base, there is a

pipe

which takes

air

from the

chamber

into a second underground

chamber

, with a lid situated at ground level.

This

contains logs, which are heated, producing

smoke

. The

pipe

at the base of

this

chamber

, allows heat and

smoke

to pass to the final stage. The process of smoking the food takes place in the third and final

box

or

chamber

, about two-thirds of which is above ground level. The

box

is an enclosed structure. Heat and

smoke

enters

Change the verb form

enter

show examples

through the

pipe

at the base, passing through bricks which are placed on top of

this

inlet

pipe

. The heat and

smoke

then

rise to the top of the

box

, where the meat or fish to be smoked is suspended and smoked.
