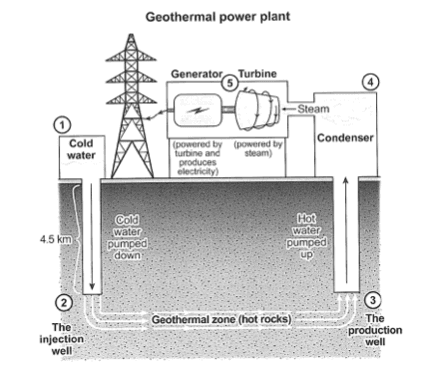

The diagram below shows how geothermal energy is used to produce electricity. Summarise the information by selecting and reporting the main features, and make comparisons where relevant.

The process diagram details five steps of how electricity is produced using geothermal energy.

First,

cold

water

is pumped down underground for 4.5 km. through the injection well.

Then

, it goes all the way through the hot rocks zone or other words Geothermal zone.

This

zone will heat up the cold

water

while

it travels, resulting in cold

water

being turned into hot

water

.

Next,

the hot

water

that arrives at the entrance of the production well is

then

pumped up to the ground, entering the condensing process ready for Step four. After, hot

water

in the condenser room is turned into a large amount of steam.

Last

last

Remove the redundancy

apply

show examples

step but not least, steam enters a turbine in order to make it move around so that the power it generates is more than enough to trigger the generator leading to the final process which is the production of electricity.
